Materials

pebbles/river stone
cobblestone
Diabase

Main Equipment

River stone aggregate crushing production line in East Timor
Finished product size：
0-5mm, 5-20mm, 20-40mm
Capacity：
70-80t/h

Enjoy factory direct sales quotations

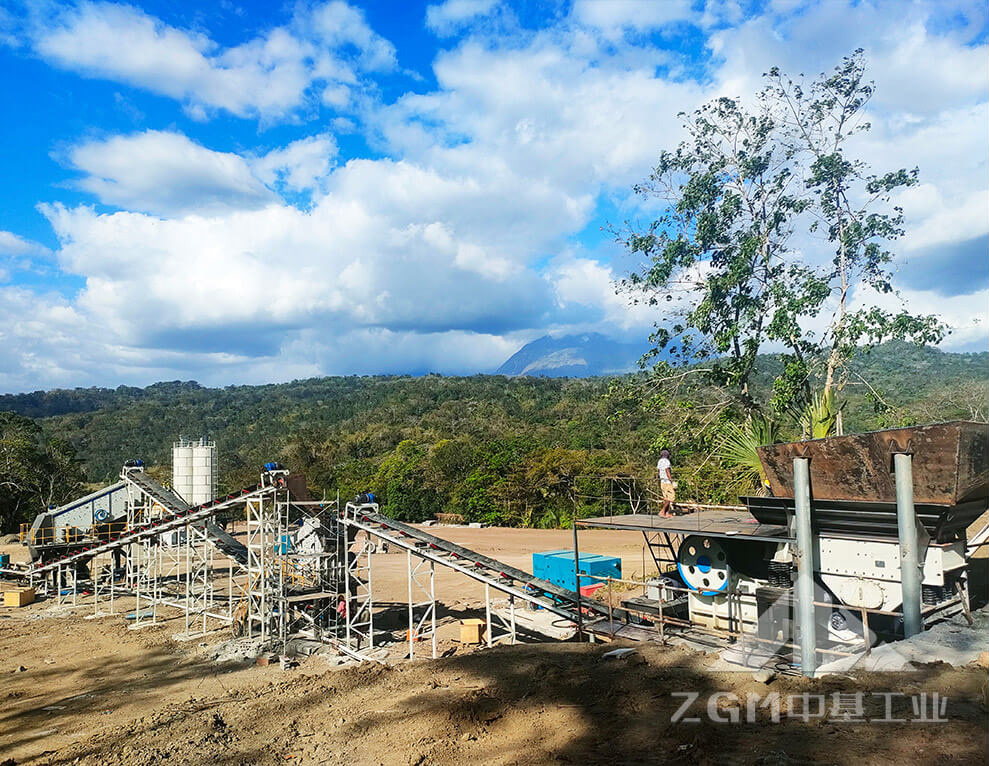

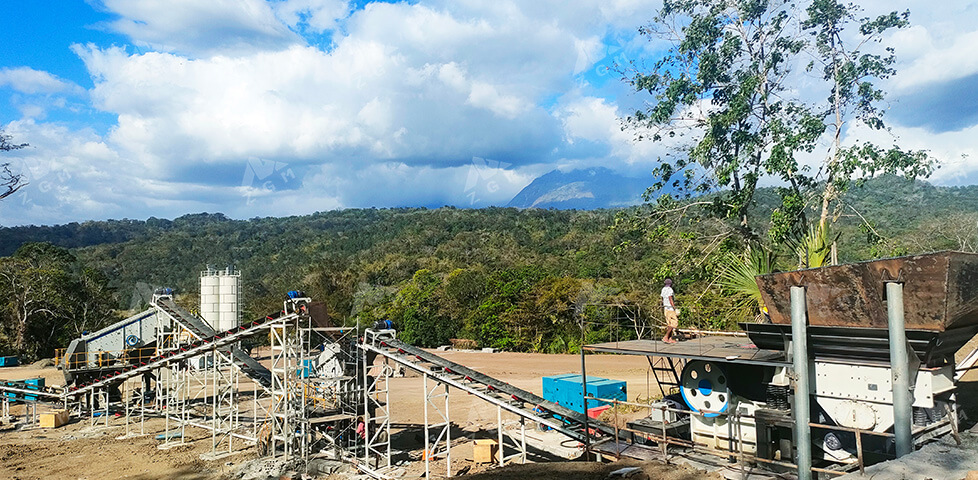

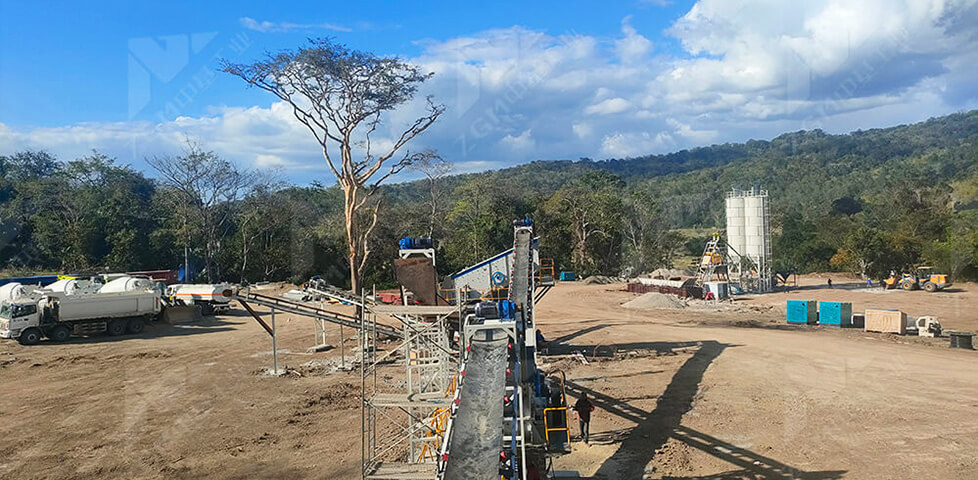

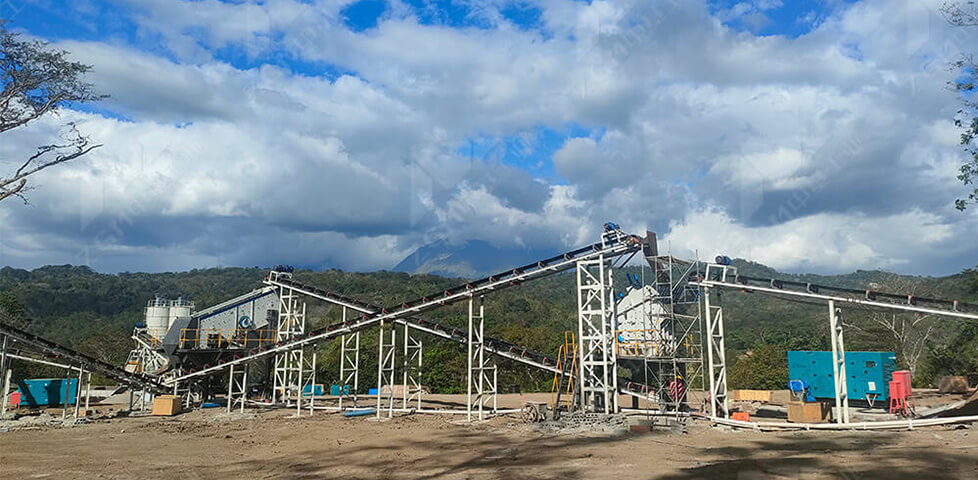

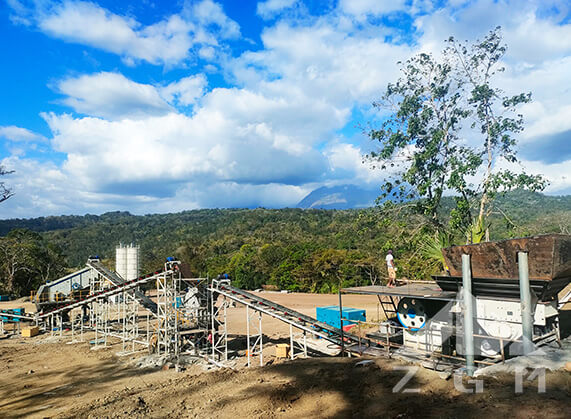

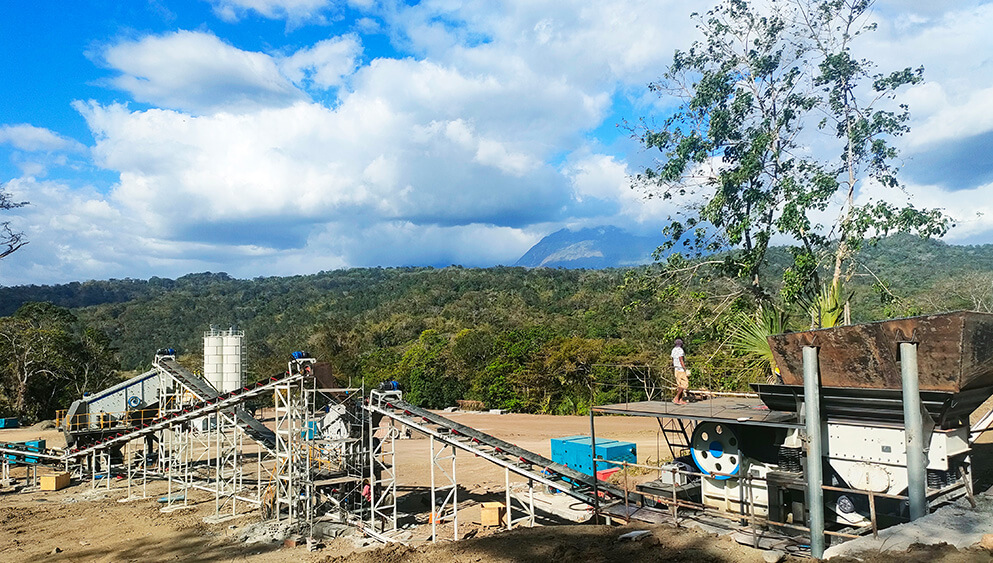

The project is located in East Timor and the raw material processed is river stone. River stone is one kind of silicate mineral with hard, wear-resistant texture and stable chemical properties. River stone has abundant resources, relatively low collection cost and high application value. Based on the material characteristics of river stone and the production requirements of customers, ZGM Industrial has planned and designed a crushing sand production line with production of 70-80 tons per hour. At the same time, three specifications of finished materials are produced, respectively, 0-5mm sand and 5-20mm, 20-40mm aggregate. The finished material will meet the use needs of high grade concrete, serve the local infrastructure construction, and the sand and stone co-production improves the comprehensive utilization rate of the material.

Materiales:
pebbles/river stone
Capacity:
70-80t/h
Finished product size：
0-5mm, 5-20mm, 20-40mm
Main Equipment：
Vibrating feeder Jaw Crusher Impact Crusher Vibrating screen

Project Features

Hydraulic wedge discharge port

Discharge port adjustment device is safe and fast. The hydraulic wedge type discharge port adjusting device is used to adjust the size of the discharge port conveniently and improve the maintenance automation. The system is convenient to operate and shorten the downtime when the equipment stops with load due to power supply interruption.

Safety device

Self-weight type safety device. When non-crushing materials (such as iron blocks) enter the crushing chamber, the equipment can be automatically discharged and reset to avoid the risk of equipment overload and the loss caused by shutdown maintenance.

Equipment Advantages

Extend service life

Optional thin lubrication type, so as to completely solve the bearing heating and other problems, so that the main shaft bearing to maintain a constant temperature, extend the maintenance cycle and service life.
