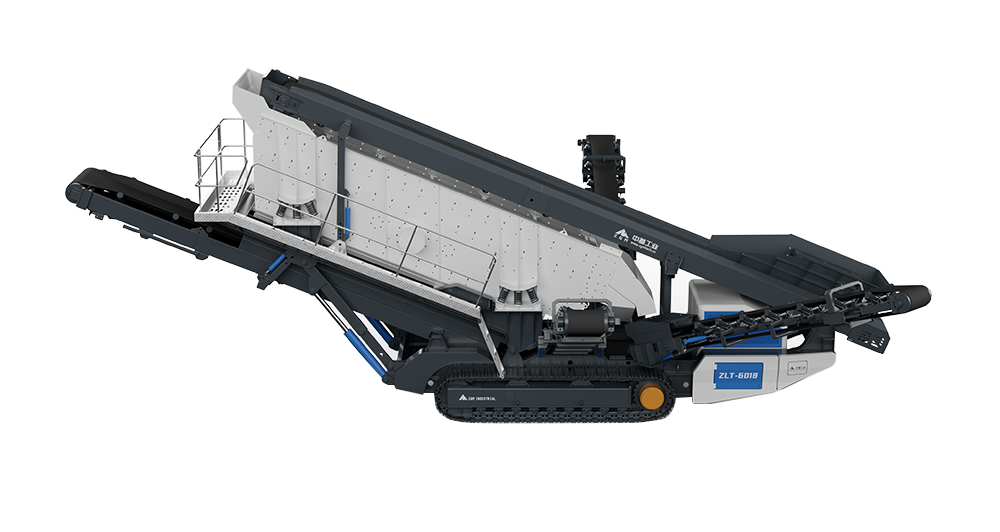

The ZLT Series Crawler Mobile Screening Station is a high-efficiency screening device integrating screening, conveying and mobility functions, specially designed for mining, construction waste recycling, road construction and various working conditions. Featuring an efficient screen mesh system with excellent material separation capability and high throughput, it precisely classifies materials into different sizes to meet diverse operational requirements.
Supports both electric and hybrid diesel-electric power modes, adaptable to grid-powered or off-grid working environments.
Direct vibration motor drive eliminates traditional transmission structures, no energy loss, delivering stronger vibration force and higher screening efficiency.
Offers various mesh types on actual needs, with customization options available. The tensioning structure allows easy installation, disassembly and later maintenance.
Manufactured with OEM-grade components under strict quality inspection systems control to ensure long-term stability and reliability.
| Model | ZLT6015 | ZLT6018 | ZLT6021 |
| Hopper Volumn(m³) | 2.8 | 3.5 | 3.5 |
| Feeding Height(mm) | 2560 | 2680 | 2680 |
| Max. Feeding Size(mm) | 200 | 200 | 200 |
| Feeding Capacity(t/h) | 300 | 350 | 350 |
| Layer of Screen | 3 | 3 | 3 |
| Vibrating Screen Length×Width(mm) | 1500×6000 | 1800×6500 | 2100×6500 |
| Main Belt Width(mm) | 1000 | 1000 | 1200 |
| Transfer Belt Width(mm) | / | / | 500 |
| Under-Screen Belt Width×Stacking Height(mm) | 1000×3500 | 1200×3500 | 1200×3500 |
| Coarse Material Belt Width×Stacking Height(mm) | 500×3500 | 650×3700 | 500×3570 |
| Middle Material Belt Width×Stacking Height(mm) | 650×3500 | 650×3700 | 650×3700 |
| Fine Material Belt Width×Stacking Height(mm) | 650×3500 | 650×3700 | 650×3700 |
| Whole Machine Power(kw) | 54 | 57.5 | 65.5 |
| Processing Capacity(t/h) | 100-300 | 150-400 | 200-500 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 33 | 36 | 38 |
| Transportation Dimensions Length × Width × Height（mm） | 13000×3300×3800 | 13500×3500×3900 | 14000×3800×3900 |
