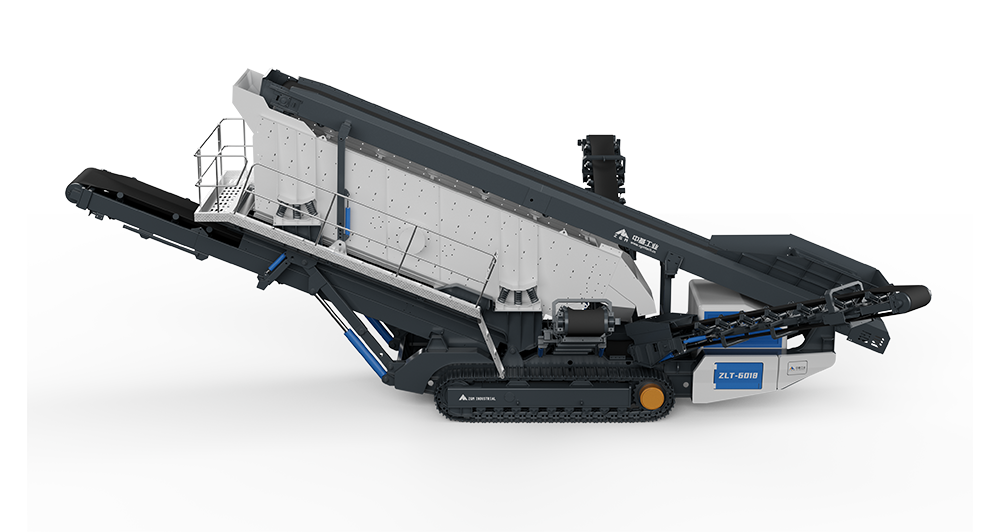

The ZLT Series Tracked Mobile Screening Station (Heavy-Duty Screen) is a high-efficiency device specifically designed for heavy-duty screening operations. Equipped with a heavy-duty screen mesh system, it offers outstanding screening capabilities, capable of handling high-capacity and large-particle materials.Its crawler chassis provides robust off-road capabilities, enabling flexible mobility across complex terrains and rapid site transitions. The multi-layer feeding protection design ensures uniform material distribution while effectively shielding the equipment from wear.
Equipped with an integrated dual-mode diesel and electric drive system, adaptable to multi-area operational scenarios. Complies with domestic and international eco-regulations while balancing efficiency.
Configuring buffer structures and impact-resistant rollers significantly prolong belt conveyor lifespan. A large-capacity hopper with dust-proof and drainage structures comprehensively protects the power core.
Lightweight yet high-load-bearing structure design supports switching between different screening modes. Adjustable screening deck height and angle, combined with easy screen mesh replacement, ensure easy and quick maintenance.
Incorporates whole machine level shock absorption and sealing systems to effectively guard against dust and moisture ingress. Features a wireless remote-controlled walking system for remote operation and one-touch startup.
| Model | ZLT1548 | ZLT1848 |
| Hopper Volumn(m³) | 6.5 | 6.5 |
| Feeding Height(mm) | 3600 | 3600 |
| Max. Feeding Size(mm) | 500 | 600 |
| Feeding Capacity(t/h) | 500 | 600 |
| Layer of Screen | 2 | 2 |
| Vibrating Screen Length×Width(mm) | 1500×4800 | 1800×4800 |
| Main Belt Width(mm) | 1000 | 1000 |
| Transfer Belt Width(mm) | / | / |
| Under-Screen Belt Width×Stacking Height(mm) | 1200 | 1200 |
| Coarse Material Belt Width×Stacking Height(mm) | 1200×3600 | 1200×3600 |
| Middle Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Fine Material Belt Width×Stacking Height(mm) | 800×3500 | 800×3500 |
| Whole Machine Power(kw) | 63.5 | 70.5 |
| Processing Capacity(t/h) | 250-500 | 260-680 |
| Walking Speed(km/h) | 0.6-1 | 0.6-1 |
| Whole Machine Weight(t) | 33 | 40 |
| Transportation Dimensions Length × Width × Height（mm） | 14500×3500×3900 | 15000×3800×3900 |
