feeding size
Capacity
Whole Machine Power

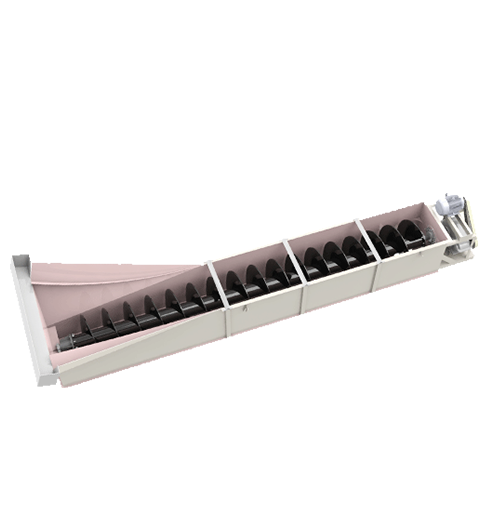

LSX series spiral sand washing machine can clean and separate powder and soil in sand and stone, its novel sealing structure, reliable transmission device, ensure the effect of cleaning and dehydration, and is a kind of high efficiency sand washing equipment used with sand making machine. LSX series spiral sand washing machine has two kinds of single rotation and double rotation. The equipment is characterized by large capacity, small power consumption, high cleanliness, less sand loss during sand washing, and no screen mesh. it is the sand washing industry upgrade ideal choice.
Big capacity, the working principle of spiral sand washer isn't collect by wheel bucket, so the handling capacity has been greatly improved.
Higher energy efficiency, reduce the energy loss by wheel bucket, so spiral sand washing machine can make better use of energy.
Reduce the wear of spare parts, spiral sand washer without screen, so without wear of screen mesh, long life for using.
More cleaning effect for washing, compare to wheel sand washer, the materials washing time is longer, and cleaning effect is more better.
| Model | Number of Spirals | Spiral Diameter(mm) | Sink Length(mm) | Selected Granularity(mm) | Processing Capacity(t/h) | Spiral Speed(rpm) | Motor Power(kw) | Water Consumption (t/h) | Weight (t) | Dimensions(mm) |
| LSX-920 | 1 | 920 | 7585 | ≤10 | 100 | 21 | 11 | 10-80 | 6.2 | 8420×2180×3960 |
| 2LSX-920 | 2 | 920 | 7585 | ≤10 | 200 | 21 | 11×2 | 20-160 | 11.5 | 8420×3970×3960 |
| LSX-1120 | 1 | 1120 | 9750 | ≤10 | 175 | 17 | 18.5 | 20-150 | 10.9 | 10770×3950×4860 |
| 2LSX-1120 | 2 | 1120 | 9750 | ≤10 | 350 | 17 | 18.5×2 | 40-300 | 17.8 | 10770×5260×4860 |
