feeding size
Capacity
Whole Machine Power

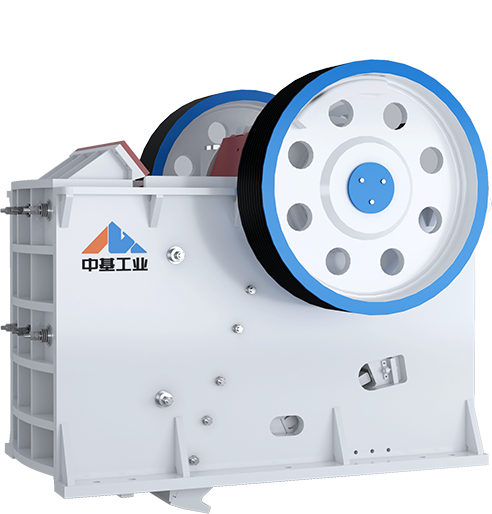

PE jaw crusher is the primary crushing equipment in mine field, with the longest in market application, cost-effective, the biggest sales in the world, and the simplest operation and maintenance skills.The crusher is suitable for crushing various ores and rocks with compressive strength not exceeding 320Mpa, and is widely used in many industries such as mining, metallurgy, building materials, highways, railways, water conservancy and chemical industries.
Centralized lubrication system, fast, safe, reliable and low maintenance.
Gasket type adjustment device for discharge hole, reliable and convenient.
Heavy deep cavity, without dead zone, improve feeding capacity and output.
Reliable work and low cost for operating, energy of single machine saves 15%~30%.
| Model | Feeding size(mm) | Max. Feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight（T） | Overall Dimension(mm) |
| PE-400x600 | 400x600 | 350 | 40-100 | 15-60 | 30-37 | 7 | 1700x1732x1653 |
| PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 45-55 | 12 | 1950x1878x1855 |
| PE-600x900 | 600x900 | 480 | 65-140 | 90-180 | 55-75 | 19 | 2200x2008x2302 |
| PE-750x1060 | 750x1060 | 630 | 80-160 | 110-320 | 90-110 | 29 | 2624x2302x3110 |
| PE-900x1200 | 900x1200 | 750 | 95-180 | 220-450 | 132 | 58 | 3550x2823x3196 |
| PE-1000x1200 | 1000x1200 | 850 | 95-190 | 230-500 | 132 | 69 | 3800x3166x3045 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 220 | 100.9 | 4930x3148x3703 |
| PE-1500x1800 | 1500x1800 | 1200 | 220-350 | 450-1000 | 355 | 132 | 5630x3210x4120 |
| Model | Feeding size(mm) | Max. Feeding size(mm) | Output size(mm) | Capacity(t/h) | Power(kw) | Weight（T） | Overall dimension(mm) |
| PE-250x400 | 250x400 | 200 | 20-50 | 5-20 | 15 | 3 | 1430x1310x1340 |
| PEX-250x750 | 250x750 | 210 | 25-60 | 15-30 | 22-30 | 5 | 1667x1545x1020 |
| PEX-250x1000 | 250x1000 | 210 | 25-60 | 15-50 | 30-37 | 7 | 1695x1966x1438 |
| PEX-250x1200 | 1200x250 | 210 | 25-60 | 20-60 | 37-45 | 8.5 | 1695x2161x1450 |
| PEX300x1300 | 300x1300 | 250 | 20-90 | 30-90 | 55-75 | 11.5 | 1893x2300x1700 |
