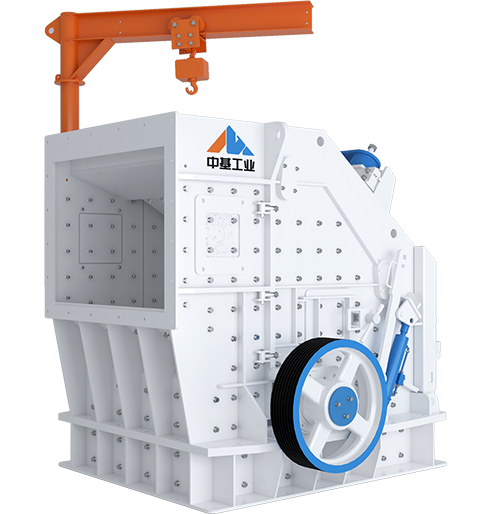

P6S series of high-strength hydraulic impact crusher is the embodiment of international advanced technology, which has strong advantages in the fields of crushing ratio, safety, operation, unit energy consumption and so on. By adjusting the special device, it can be freely converted between the first and second crushing and widely used in the stone crushing plant.
By adopting the three combination design of open box, hydraulic hoisting device and maintenance hoisting, make hammer and parts replacement in short time.
Hydraulic automatically adjust the gap between the Impact rack and the plate hammer, effectively reducing labor intensity, fast, convenient and safer operation.
Bearing pedestal adopts overall forging steel, which can perfectly fit the crusher frame and increase the radial force of bearing pedestal.
Hammer adopts crescent, which can ensure the material to crush vertically with great impact strength, high crushing efficiency.
| Model | Output size(mm) | Max. Feeding size(mm) | Capacity(t/h) | Power(kw) | Overall Dimension(mm)(L*W*H) |
| P6S150 | 20-100 | 600 | 100-200 | 90-110 | 2800X1925X2305 |
| P6S200 | 20-100 | 900 | 140-285 | 110-160 | 2871X1967X2600 |
| P6S280 | 20-100 | 900 | 200-400 | 160-200 | 2871X2307X2600 |
| P6S380 | 20-200 | 950 | 250-500 | 200-315 | 3175X2781X2800 |
| P6S480 | 20-200 | 1000 | 400-600 | 315-375 | 3582X3205X3118 |
| P6S680 | 20-200 | 1200 | 550-700 | 400-500 | 4056X3395X3356 |
