feeding size
Capacity
Whole Machine Power

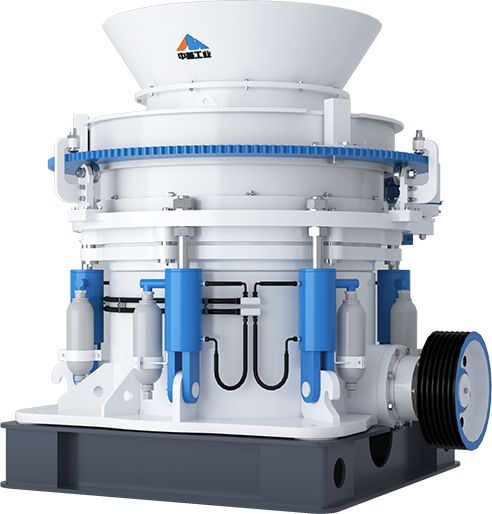

HPS series multi-cylinder hydraulic cone crusher is suitable for all kinds of mines, aggregates, tunnels and other fields of medium, fine and ultra-fine crushing. It has become one of the most popular equipment for users and engineers in the crushing production line. Our company through of technology, processing technology, material application, process configuration and so on, has put the advantages into our production.
Full hydraulic operation is applied on cleaning cavity, overload protection, adjustment and locking.
The perfect combination of crushing stroke, crushing speed and crushing chamber makes the capacity increase by 35%-60%.
The materials are crushed under the adoption of unique laminated crushing principle, and the efficiency is higher.
Transmission parts and the structure of lubrication seal are optimized further based on the structure of fixed main shaft and eccentric shaft rotates.
| Model | Type of chamber | Standard | Short head | Power (kw) | Capacity(t/h) | ||
| Feeding size(mm) | Min.output size(mm) | Feeding size(mm) | Min.output size(mm) | ||||
| HPS200 | coarse | 185 | 19 | 76 | 10 | 132-200 | 90-250 |
| middle | 125 | 17 | 54 | 6 | |||
| fine | 95 | 13 | 23 | 6 | |||
| superfine | - | - | 10 | 5 | |||
| HPS300 | oversize | 230 | 25 | - | - | 180-250 | 115-440 |
| coarse | 210 | 20 | 75 | 10 | |||
| middle | 150 | 15 | 50 | 8 | |||
| fine | 105 | 10 | 20 | 6 | |||
| superfine | - | - | 20 | 6 | |||
| HPS400 | oversize | 295 | 30 | - | - | 280-355 | 140-630 |
| coarse | 250 | 25 | 90 | 10 | |||
| middle | 195 | 20 | 50 | 8 | |||
| fine | 110 | 14 | 40 | 6 | |||
| superfine | - | - | 30 | 6 | |||
| HPS500 | oversize | 330 | 30 | - | - | 355-450 | 175-790 |
| coarse | 285 | 25 | 90 | 13 | |||
| middle | 200 | 20 | 55 | 10 | |||
| fine | 133 | 16 | 40 | 8 | |||
| superfine | - | - | 35 | 6 | |||
| HPS800 | oversize | 353 | 32 | - | - | 550-630 | 260-1200 |
| coarse | 297 | 32 | 155 | 13 | |||
| middle | 267 | 25 | 92 | 10 | |||
| fine | 219 | 16 | 33 | 6 | |||
