feeding size
Capacity
Whole Machine Power

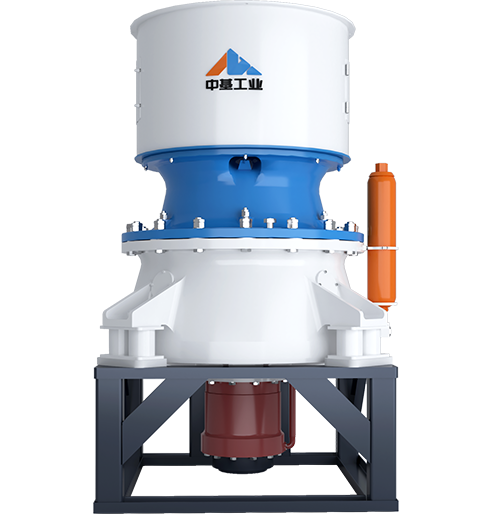

DG series single-cylinder hydraulic cone crusher has a combination of crushing machinery, hydraulic, electrical, automation and intelligent control technology. The machine is the high efficient crusher which is researched and developed independently. widely used in metal and non-metallic minerals, cement, sand, metallurgy and other industries of medium, fine and ultra-fine crushing operations. It has the advantages of high crushing efficiency, low production cost,convenient maintenance and adjustment, excellent grain type of broken products and so on.
The integrated design of hydraulic pressure station and lubricating station save installation space.
Sliding bearing adopts special oil wedge design, which can avoid direct frictional contact between shaft and bearing.
The machine adopts the principle of laminating crushing, which improves product shape to be cubic.
DG series single cylinder hydraulic cone crusher integrates discharge opening adjustment and overload protection functions as a whole.
| Model | Type of chamber | Max. Feeding size(mm) | Adjusting range of discharge opening(mm) | Power(kw) | Capacity (t/h) |
| DG100 | S1 oversize | ≤240 | ≥22 | ≤90 | 85-170 |
| S2 Middle coarse | ≤200 | ≥19 | 70-130 | ||
| H1 fine | ≤135 | ≥10 | 46-130 | ||
| H2 middle fine | ≤65 | ≥8 | 35-80 | ||
| H3 super fine | ≤38 | ≥4 | 27-60 | ||
| DG160 | S1 oversize | ≤360 | ≥25 | ≤160 | 120-345 |
| S2 Middle coarse | ≤300 | ≥22 | 105-305 | ||
| S3 coarse | ≤235 | ≥19 | 90-275 | ||
| H1 fine | ≤185 | ≥13 | 66-210 | ||
| H2 middle fine | ≤90 | ≥10 | 65-165 | ||
| H3 super fine | ≤50 | ≥6 | 48-105 | ||
| DG250 | S1 oversize | ≤450 | ≥35 | ≤250 | 255-605 |
| S2 Middle coarse | ≤400 | ≥29 | 215-515 | ||
| S3 coarse | ≤300 | ≥25 | 190-490 | ||
| H1 fine | ≤215 | ≥16 | 110-395 | ||
| H2 middle fine | ≤110 | ≥13 | 115-340 | ||
| H3 super fine | ≤70 | ≥8 | 90-255 | ||
| DG315 | S1 oversize | ≤560 | ≥41 | ≤315 | 335-1050 |
| S2 Middle coarse | ≤500 | ≥38 | 305-895 | ||
| H1 fine | ≤275 | ≥16 | 170-665 | ||
| H2 middle fine | ≤135 | ≥16 | 190-505 | ||
| H3 super fine | ≤65 | ≥13 | 205-320 | ||
| DG500 | S1 oversize | ≤480 | ≥60 | ≤355 | 500-950 |
| H1 fine | ≤250 | ≥20 | 350-650 | ||
| H2 middle fine | ≤170 | ≥16 | 280-500 | ||
| H3 super fine | ≤100 | ≥12 | 200-450 |
