feeding size
Capacity
Whole Machine Power

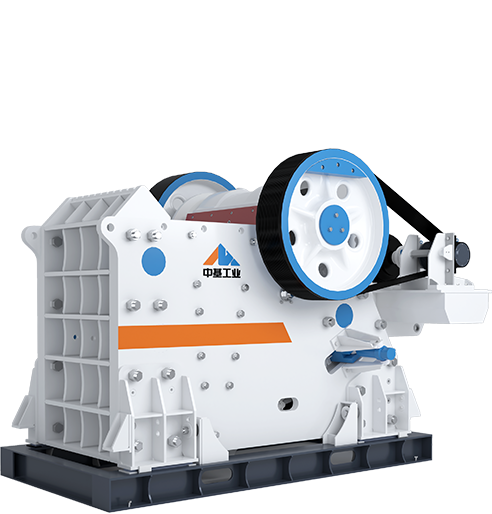

J6S European jaw crusher integrates international advanced crushing technology, processing technology and materials, which is another condensation breakthrough between China and international technology in the field of coarse crushing. Which comprehensive advantages in reliability, stability, output ratio, safety, maintainability will become one of the popular jaw crusher.
The movable jaw assembly is composed of high-quality steel casting (weld assembly); large flywheel (pulley) adopts in block casting process.
Integral cast steel structure is adopted for bearing seat. The integral bearing seat can't only enhances the radial strength but also reduces cost.
The adoption of tooth-type jaw plate increases the capacity and lengthens the maintenance period of spare parts.
Integrated motor frame, which reduces installation space and length of "V" belt.
| Model | Feeding size(mm) | Max. Input size(mm) | Output size(mm) | Capacity(t/h) | Power(kw)） | Rotate speed(rpm) | Overall Dimension(mm) |
| J6S80 | 520X800 | 420 | 60-150 | 80-290 | 75 | 350 | 2650x1540x1780 |
| J6S100 | 760X1000 | 650 | 70-200 | 140-400 | 110 | 260 | 3670x2420x2490 |
| J6S96 | 580X930 | 480 | 60-175 | 120-325 | 90 | 330 | 2950x2300x1950 |
| J6S106 | 700X1060 | 600 | 70-200 | 140-420 | 110 | 310 | 3230x2440x2590 |
| J6S110 | 850X1100 | 720 | 80-200 | 160-550 | 132 | 230 | 3800x2450x2550 |
| J6S125 | 950X1250 | 800 | 100-250 | 230-760 | 160 | 220 | 4100x2800x3440 |
| J6S130 | 1100X1300 | 950 | 120-260 | 260-780 | 160 | 220 | 4836x2762x3489 |
| J6S145 | 1100X1450 | 920 | 125-275 | 320-950 | 200 | 220 | 4400x3060x3210 |
| J6S160 | 1200X1600 | 1020 | 150-300 | 410-1150 | 250 | 220 | 5700x3650x3550 |
