feeding size
Capacity
Whole Machine Power

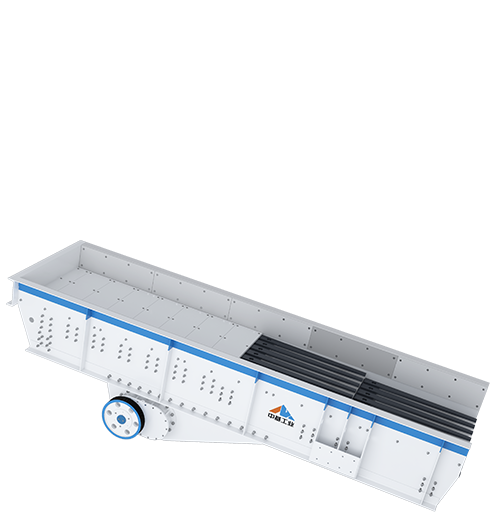

ZSW series vibrating feeder adopts double eccentric shafts vibration exciter, which ensures that the equipment can withstand the large impact of falling material. The bulk, granular materials can be fed uniformly, regularly and continuously from storage silos to receiving device to avoid the phenomenon of crashes of the receiving device in the production process and to extend service life.
The closed structure can be added according to specific situations to avoid powder pollution.
Simple structure, strong loading, low cost and convenient for installation and maintenance.
Adjust the exciting force, according to production line operating requirements to change and control flow.
It can adjust grate clearance according to raw material, pre-screening function (separating soil or small materials in advance).
| Model | Feeding size(mm) | Feeding size(mm) | Capacity(t/h) | Power(kw) | Weight(t) | Overall Dimension(mm) |
| ZSW3090 | 3000×900 | 400 | 80-120 | 7.5 | 3.9 | 3110×1800×1600 |
| ZSW3896 | 3800×960 | 500 | 120-210 | 11 | 4.2 | 3850×1950×1630 |
| ZSW4211 | 4200×1100 | 650 | 180-400 | 15 | 4.8 | 4400×2050×1660 |
| ZSW4911 | 4900×1100 | 650 | 280-500 | 15-18.5 | 5.6 | 5200×2050×1700 |
| ZSW4913 | 4900×1300 | 800 | 300-550 | 22 | 6.7 | 5200×2350×1750 |
| ZSW6016 | 6000×1600 | 1020 | 500-900 | 30-45 | 10.3 | 6160×2918×2292 |
